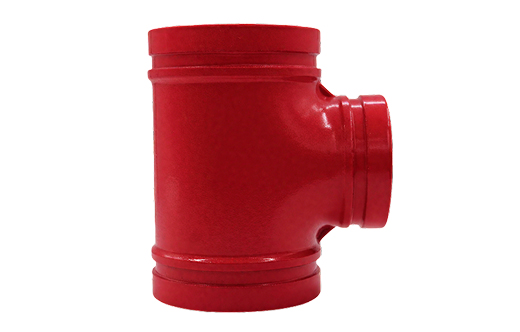

130RX Ductile Iron Grooved Fitting - X-Type Reducing Tee

Product Name: Ductile Iron Grooved Pipe Fittings - X-Type Reducing Tee
Product Code: 130RX
Product Specification Range: 3" x 2-1/2" (DN80 x 65) - 12" x 10" (DN300 x 250);
Design Standards: ISO 6182, AWWA C606, GB 5135.11,
Material: ASTM A536 Grade 65-45-12 and GB/T 1348 QT450-10
Pipeline Connection Standards: ASME B36.10, ISO 4200, GB/T 21835, GB/T 3091.

Inquire Now

Product description

The grooved connection technology, also known as the clamp connection technology, has been quickly accepted by both domestic and international markets due to its advanced nature. It has gradually replaced the two traditional pipe connection methods of flange and welding. The grooved connection technology is not only more mature in terms of technology but also widely recognized in the market. Moreover, it has been actively promoted by national regulations and policies. The application of grooved connection technology has simplified the complex pipe connection process, making it faster and more convenient, and has taken a significant step forward in the field of pipe connection technology.

Customer challenge

Traditional threaded connections require on-site thread machining, which is inconvenient for construction.

Traditional welding connections produce welding slag and fumes, causing pollution. They require high-level construction and installation qualifications. Construction is very inconvenient, project delivery cycles are long, and costs are high.

Traditional welding and flange connections have low installation efficiency, high installation costs, long construction periods, and complex disassembly and maintenance.

Traditional flange connections require a large installation space and cannot be installed in confined spaces.

Traditional welding and flange connections are rigid and cannot address issues such as pipe thermal expansion and contraction, or pipe settlement.

Product function

Performance Safety and Reliability

Noise Reduction

Vibration Absorption

Quick Installation

Anti-Collision

Environmental Protection

Our company is the only one in China that holds four certifications: FM, UL, LPCB, and VdS, and we also have the most comprehensive range of 3C certifications in China. The pressure ratings range from 225psi to 750psi, meeting your needs for different pressure levels.

The rubber seals used in our products are elastic and effectively reduce vibrations, significantly lowering noise levels.

The reserved pipe end clearance effectively addresses thermal expansion and contraction of the pipes, compensating for pipe settlement.

Easy disassembly and maintenance allow for convenient replacement of pipe fittings. In particular, our quick-install series increases installation speed by tenfold.

High mechanical strength, strong pressure-bearing capacity, and resistance to impacts.

The surface treatment of bolts and nuts uses trivalent chromium, which is environmentally friendly and non-polluting. On-site installation is also eco-friendly, with no welding slag or fumes.

Value advantage

Corrosion Resistance

The surface of the castings can be treated with anti-corrosion methods such as electrophoretic painting, powder coating, and hot-dip galvanizing.
Easy Maintenance

The system is highly stable and easy to maintain. The unique flexibility of the grooved pipe fittings allows the piping to withstand vibrations, contraction, and expansion. Compared to welding and flange connections, the stability of the piping system is enhanced, making it more adaptable to temperature changes. This protects the piping valves and reduces the destructive effects of pipe stress on structural components.
Easy Installation

The connection operations of grooved pipe fittings are extremely simple and do not require special professional skills. Ordinary workers can perform the operations after simple training. The required operating space is minimal, enabling true installation against walls and in corners. The difficulty of operation is significantly reduced, thus saving floor space and improving the aesthetic effect of the piping installation.
Construction Safety

With the grooved pipe fitting connection technology, only a cutting machine, a grooving machine, and a wrench for tightening bolts are needed on-site. Construction organization is convenient and does not require open flame treatment.
Economic Benefits

The simple connection operations of grooved pipe fittings save labor and time, thus offering good economic benefits.

Ductile Iron Grooved Reducing Tee – Reliable X-Type Reducing Connections

Grooved pipe fittings are a vital part of modern piping systems, providing flexible, secure connections. Our ductile iron grooved reducing tee is designed for X-type branching with a reducing outlet, allowing seamless transition between pipes of different diameters while maintaining durability and high flow efficiency.

Product Overview of Ductile Iron Grooved Reducing Tee

Product Name: Ductile Iron Grooved Pipe Fittings - X-Type Reducing Tee
Product Code: 130RX
Specification Range: 3" x 2-1/2" (DN80 x 65) – 12" x 10" (DN300 x 250)
Design Standards: ISO 6182, AWWA C606, GB 5135.11
Material: ASTM A536 Grade 65-45-12, GB/T 1348 QT450-10
Pipeline Connection Standards: ASME B36.10, ISO 4200, GB/T 21835, GB/T 3091

This reducing tee is engineered to provide reliable branching where pipelines of different sizes meet, ensuring leak-proof connections under high pressure and accommodating complex piping layouts.

Key Features of Ductile Iron Grooved Reducing Tee

Durable Construction: Made of high-strength ductile iron resistant to corrosion, mechanical stress, and high-pressure conditions.
X-Type Reducing Design: Allows smooth branching while reducing pipe diameter, optimizing flow distribution in complex piping networks.
Wide Compatibility: Compatible with international standards, including ASME B36.10, ISO 4200, and GB/T 21835.
Leak-Proof and Flexible: Grooved connections absorb vibrations and thermal expansion, ensuring a secure, long-lasting joint.
Quick Installation: Grooved design simplifies assembly, saving labor and minimizing downtime in large-scale projects.

Applications and Suitable Buyer Profiles

Our ductile iron grooved reducing tees are widely used by:

Municipal Water & Wastewater Authorities: Ideal for water supply networks, sewage systems, and pressure distribution points.
Fire Protection Contractors: Used in sprinkler networks that require branch connections with varying pipe diameters.
HVAC and Industrial Piping Engineers: For large-scale facilities where pipelines of different sizes converge, such as factories, commercial buildings, and processing plants.
Oil, Gas, and Chemical Installers: Ensuring safe, efficient, and reliable transitions in pipelines handling different flow capacities.

This product is ideal for procurement managers looking for bulk supply solutions, reliable performance, and compliance with international standards.

Advantages for Bulk Procurement

Large-Volume Supply: Optimized for municipal projects, industrial plants, and commercial facilities requiring high quantities.
Customizable Options: Available in various sizes and compatible pressure ratings to meet diverse project needs.
Quality Assurance: Each reducing tee undergoes rigorous quality control and is certified according to ISO6182, AWWA C606, and GB 5135.11 standards.
Technical Support: Our team provides guidance on product selection, system design, installation, and maintenance, ensuring efficient and safe operations.

Ordering Your Ductile Iron Grooved Reducing Tee

For large-scale projects requiring precise pipe transitions, our ductile iron grooved reducing tees are ready for immediate bulk shipment. Contact us with your specifications to receive a personalized quote and technical assistance.

Ensure seamless, reliable, and flexible branching in your piping systems with our ductile iron grooved reducing tees – engineered for industrial, municipal, and commercial applications.
