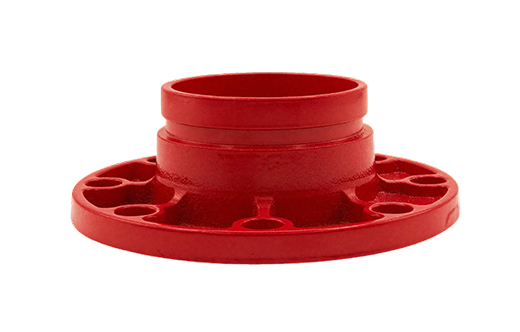

321 Ductile Iron Grooved Fittings - Adaptor Flange

Product Name: Ductile Iron Grooved Fittings - Adaptor Flange CLASS 125/150

Product Code: 321GA

Size Range: 2" (DN50) – 24" (DN600)

Design Standards: ISO 6182, AWWA C606, GB 5135.11

Product Material: ASTM A536 Grade 65-45-12 and GB/T 1348 QT450-10

Connected Pipe Standards: ASME B36.10, ISO 4200, GB/T 21835, GB/T 3091

Inquire Now

Product description

Grooved Connection Technology, also known as Clamp Connection Technology, has been widely adopted in domestic and international markets due to its advanced nature, gradually replacing traditional pipeline connection methods such as flanges and welding. It is not only technically mature and market-proven but also actively guided by national regulations and policies. This technology simplifies pipeline connections, making them faster, more convenient, and propelling pipeline engineering forward.

Customer challenge

Traditional Welding and Flange

Connections are rigid joints, which fail to address issues such as pipeline thermal expansion/contraction and settlement.

Traditional Flange Connections

Require large installation space, unsuitable for confined areas.

Traditional Welding/Flange Connections

Low efficiency, high costs, long cycles, and complex maintenance.

Traditional Welded Connections

Generate welding slag and fumes, demand high installation qualifications, prolong project timelines, and increase costs.

Traditional Threaded Connections

On-site threading is required, complicating construction.

Product function

Eco-Friendliness

Impact Resistance

Quick Installation

Vibration Absorption

Bolts and nuts feature trivalent chromium coating, ensuring environmental safety. On-site installation generates no welding slag or fume pollution.

High mechanical strength, strong pressure resistance, and excellent durability against physical impacts.

Disassembly, maintenance, and replacement of pipeline components are effortless. Particularly with our Quick-Install Series, installation speed is increased tenfold.

Pre-set pipe-end clearance efficiently addresses pipeline thermal expansion/contraction and compensates for pipeline settlement.

Value advantage

Economic Efficiency

The simplicity of grooved pipe fittings connection operations saves labor and time, resulting in strong economic benefits.
Construction Safety

Grooved pipe fittings connection technology requires only basic tools on-site, such as a cutting machine, grooving machine, and wrenches for tightening bolts. Construction organization is simplified, and no open flame treatment is required.
Easy Installation

The connection process for grooved pipe fittings is straightforward, requiring no specialized skills. Ordinary workers can operate it after brief training. The required installation space is minimal, allowing true wall- or corner-mounted installation. This significantly reduces operational complexity, saves floor space, and improves the aesthetic quality of pipeline installation.
Easy Maintenance

The system exhibits excellent stability and ease of maintenance. The grooved pipe fittings connection method features unique flexible characteristics, enabling the pipeline to resist vibration, contraction, and expansion. Compared to welding and flange connections, the stability of the pipeline system is enhanced, making it more adaptable to temperature variations. This protects pipeline valves and reduces stress-induced damage to structural components.
Corrosion Resistance

The surface of castings can undergo anti-corrosion treatments such as electrophoretic coating, powder coating, and hot-dip galvanizing.

Ductile Iron Grooved Adaptor Flange - High-Performance Bulk Supply

Grooved pipe fittings are essential components in modern piping systems, ensuring secure and flexible connections. Our ductile iron grooved adaptor flange is engineered for durability, ease of installation, and high-volume applications.

Product Overview of Ductile Iron Grooved Adaptor Flange

Product Name: Ductile Iron Grooved Fittings - Adaptor Flange CLASS 125/150
Product Code: 321GA
Size Range: 2" (DN50) – 24" (DN600)
Design Standards: ISO 6182, AWWA C606, GB 5135.11
Material: ASTM A536 Grade 65-45-12, GB/T 1348 QT450-10
Connected Pipe Standards: ASME B36.10, ISO 4200, GB/T 21835, GB/T 3091

Our ductile iron grooved adaptor flange is precision-engineered to provide a reliable transition between grooved piping and flanged equipment, offering secure, leak-proof connections even under high-pressure conditions.

Key Features of Ductile Iron Grooved Adaptor Flange

Durable Construction: Made from premium ductile iron to resist corrosion, mechanical stress, and high pressure.
Flexible Connection: Allows smooth integration between grooved pipes and flanged systems without compromising stability.
Wide Size Range: Accommodates piping from DN50 to DN600, suitable for various industrial and municipal projects.
Standards Compliance: Designed according to ISO 6182, AWWA C606, and GB 5135.11 for safety and long-term reliability.
Easy Installation: Grooved design simplifies assembly, reducing labor costs and installation time.

Applications of Ductile Iron Grooved Adaptor Flange

Water supply and sewage systems
Fire protection and sprinkler systems
HVAC pipelines in commercial and industrial buildings
Oil, gas, and chemical transport pipelines
Industrial plant piping requiring secure flanged connections

These adaptor flanges are ideal for large-scale projects that demand flexibility, reliability, and secure pipe connections.

Advantages for Bulk Procurement

Large-Volume Supply: We specialize in fulfilling bulk orders for industrial, municipal, and commercial clients.
Customizable Options: Available in different sizes and pressure classes (CLASS 125/150) to meet project requirements.
Quality Assurance: Each adaptor flange undergoes strict quality control to ensure performance and compliance with international standards.
Technical Support: Our experts provide guidance on product selection, installation, and maintenance for complex piping systems.

Ordering Your Ductile Iron Grooved Adaptor Flange

For large-scale projects, our ductile iron grooved adaptor flanges are available for immediate bulk shipment. Contact us today with your specifications, and we will provide a tailored quote for your project.

Ensure your piping systems are secure, reliable, and easy to maintain with our premium ductile iron grooved adaptor flanges.
