Home > Products > Valve > Center Line Lug Soft Seal Signal Butterfly Valve

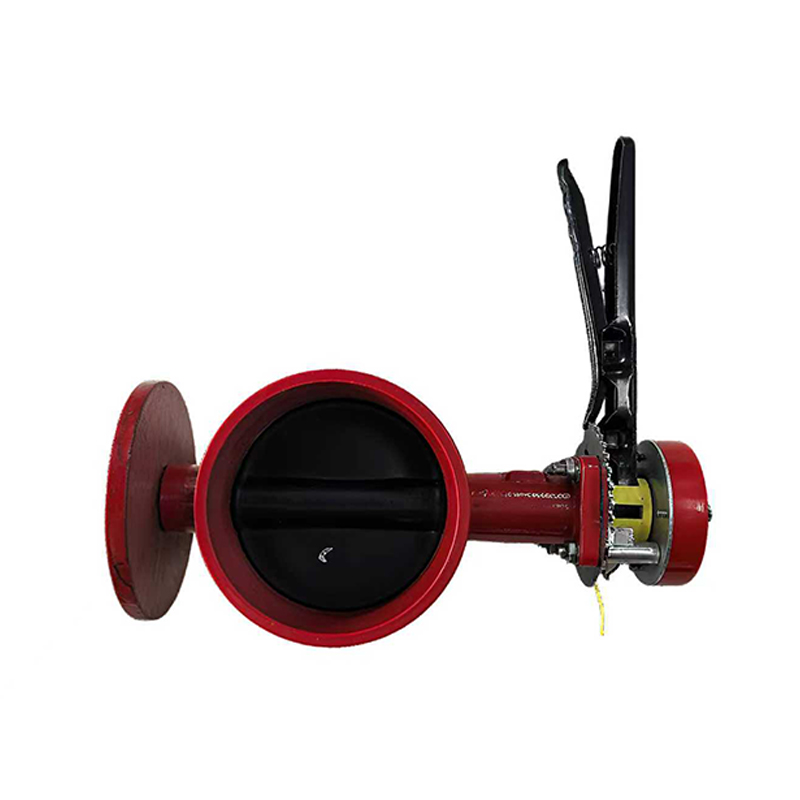

Center Line Lug Soft Seal Signal Butterfly Valve

Size Range: 2"–12" (DN50–DN300)

Design Standard: BS EN 593

Connection Standard: BS EN 1092-2

Working Pressure: PN10, PN16

Inquire Now

Product description

This is a regulating valve with a simple and compact structure, featuring 90° rotational opening and closing, suitable for low-pressure pipeline media. The valve adopts a unique sealing structure to ensure tight fitting when closed, achieving excellent sealing performance. It is primarily used in scenarios where manual operation is required and remote switch signals need to be fed back to a computer for display.

Customer challenge

Improper installation or insufficient preload force may cause leakage.

Switching Signal Loss or False Alarm

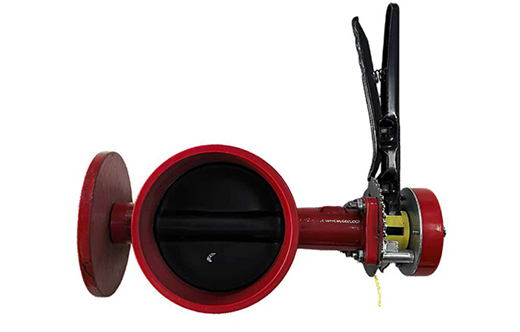

Product function

Design Functions

Sensor Functions

This valve strictly adheres to British standard specifications during the design and manufacturing processes to ensure product quality and safety. It features simple and flexible operation, safe and reliable performance, and easy installation

Value advantage

Reliable Sealing

Achieves complete sealing, with zero leakage detected in gas tightness tests.
Convenient Installation

Compact and lightweight, it allows for easy disassembly, assembly, and maintenance, and can be installed in any orientation.
High Practicality

It allows for the replacement of components with different materials to adapt to various working conditions.
Low Torque Operation

Requires minimal operating torque, ensuring labor-saving and lightweight handling.
Low Torque Operation

Requires minimal operating torque, ensuring labor-saving and lightweight handling.
