Double Eccentric Butterfly Valves

1. Excellent Sealing Performance: The double eccentric design ensures the disc tightly fits the seat during closing, achieving near-zero leakage.

2. Low Fluid Resistance: The small contact area between the disc and medium reduces fluid resistance and energy consumption.

3. Strong Regulation Performance: Offers a wide regulation range and high precision for accurate flow control.

4. Compact Structure and Easy Operation: Simple design, small size, lightweight, and easy installation and maintenance.

5. Wide Application Range: Suitable for various media and conditions, including high temperature, high pressure, and corrosive environments.

6. Long Service Life: High-quality materials and advanced sealing technology reduce wear.

7. Bidirectional Sealing: Supports bidirectional pressure sealing, offering flexible installation options.

Inquire Now

Product description

1. The double eccentric butterfly valve is a high-performance butterfly valve with an eccentric design for both the stem and disc. 2. The stem axis is offset from both the disc center and the valve body center. 3. This design allows the disc to quickly disengage from the seat during opening, reducing friction and wear, while achieving a tight seal during closing.

Customer challenge

High-performance design results in relatively higher prices.

Higher Cost

Special conditions may require greater operating torque.

High Operating Torque

Installation must strictly follow guidelines to avoid performance issues.

High Installation Requirements

Frequent operation or harsh conditions can cause wear on the disc and seat.

Wear Issues

Long-term use may lead to a decline in sealing performance.

Seal Aging

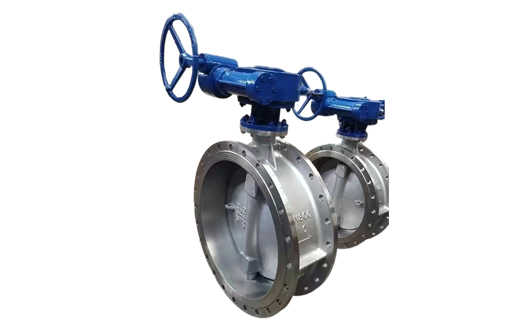

Product function

Bidirectional Sealing

Long Service Life

Wide Application Range

Compact Structure and Easy Operation

Strong Regulation Performance

Low Fluid Resistance

Excellent Sealing Performance

Supports bidirectional pressure sealing, offering flexible installation options.

High-quality materials and advanced sealing technology reduce wear.

Suitable for various media and conditions, including high temperature, high pressure, and corrosive environments.

Simple design, small size, lightweight, and easy installation and maintenance.

Offers a wide regulation range and high precision for accurate flow control.

The small contact area between the disc and medium reduces fluid resistance and energy consumption.

The double eccentric design ensures the disc tightly fits the seat during closing, achieving near-zero leakage.

Value advantage

Safety and Reliability

In critical applications (e.g., chemical, power industries), the high performance and reliability of double eccentric butterfly valves help ensure safe system operation.
High Cost-Effectiveness

Although the initial investment in double eccentric butterfly valves may be higher than that of standard butterfly valves, their long service life and low maintenance costs result in high cost-effectiveness over their lifecycle.
Energy Saving and Consumption Reduction

The low fluid resistance design reduces system energy consumption, saving energy costs over long-term operation.
Bidirectional Sealing

Supports bidirectional sealing, providing flexible installation options and enhancing system flexibility and reliability.
Wide Applicability

Suitable for various media (e.g., water, steam, gas, corrosive liquids) and conditions (e.g., high temperature, high pressure, highly corrosive environments), offering strong versatility.
Compact Structure and Easy Installation

Its small size and lightweight design make it easy to install and maintain, reducing space requirements and installation costs.
Excellent Regulation Performance

Capable of wide-range flow regulation, it is suitable for systems requiring precise control, improving overall system efficiency.
Low Friction and Long Service Life

The disc quickly disengages from the seat during opening, reducing friction and wear, extending the valve's service life, and lowering maintenance costs.
High Sealing Performance

The double eccentric design ensures that the disc tightly fits the seat when closed, achieving zero leakage, making it particularly suitable for applications with high sealing requirements.
