Fixed Welded Full Bore Ball Valve

Size Range: DN200–DN1600

Design Standard: GB/T 37827

Connection Standard: GB/T 985.1/2

Working Pressure: PN16, PN25

Application Range: Hot water, 0–180℃

Inquire Now

Product description

A fully welded ball valve is a type of valve whose body is formed by one or multiple welding seams. It can be directly welded to pipelines, eliminating the need for flanges, gaskets, bolts, and other components, thus saving resources.

Customer challenge

Traditional welded ball valves may suffer from overall leakage if one seat is damaged due to pipeline impurities, wear, or other reasons.

Traditional large-diameter welded ball valves are fabricated by welding steel plates to steel pipes, resulting in insufficient overall strength that makes them prone to cracking under conditions such as geological subsidence.

Unreasonable design structure is prone to internal leakage.

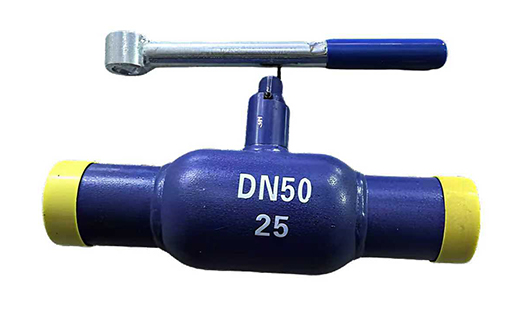

Product function

Cut off or clear pipeline media

Valves play a critical role in cutting off the medium in the pipeline where they are installed. They are devices that control the flow or cutoff of pipeline media.

Value advantage

Multi-Layer Sealing for Prevention of Internal and External Leakage

The valve seat sealing surface and stem adopt a multi-seal structure design, ensuring safety, reliability, and no external leakage.
Long Service Life

Utilizes carbon fiber-reinforced PTFE seals for superior performance and extended lifespan.
Low Flow Resistance and Low Energy Consumption

Full Bore Design for Low Flow Resistance, Environmental Protection, and Energy Saving
High Strength

The side valve body is integrally forged from A105 steel, offering superior strength and axial force resistance to meet the complex conditions of buried applications.
