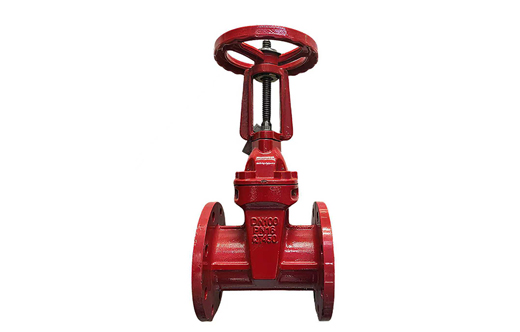

Flange Rising Stem Soft Seal Gate Valve

American Standard:
Size range: 2"-24" (DN50-DN600)
Design standard: AWWA C515, ASME B16.10
Connection standard: ASME B16.1
Working pressure: 363PSI, 300PSI, 250PSI, 200PSI
Application range: fire protection, water supply
Working temperature range: 0℃-80℃

British Standard:
Size range: 2"-24" (DN50-DN600)
Design standard: BS5163-1, BS5163-2, EN 558-1 structural length third series
Connection standard: BS EN 1092-2, BS 10 TABLE D/E
Working pressure: PN16, PN10
Application range: fire protection, water supply
Working temperature range: 0℃-80℃

German Standard:
Size range: 2”-24” (DN50-DN600)
Design standard: EN 1171, F4 series EN 558-1 structural length 14th series
Connection standard: EN 1092-2
Application range: fire protection, water supply
Working temperature range: 0℃-80℃

National standard:
Size range: 2”-24” (DN50-DN600)
Design standard: GB/T 32290, CJ/T 216, GB 5135.6
Connection standard: GB/T 17241.6
Working pressure: PN16, PN10
Application range: fire protection, water supply
Working temperature range: 0℃-80℃

Inquire Now

Product description

This valve is mainly used to connect and cut off the medium in the pipeline. The valve stem nut is on the bracket. When opening and closing the gate, the valve stem nut is rotated to achieve the lifting and lowering of the valve stem. The valve switch can be identified according to the height of the valve stem. The gate is entirely covered with rubber, and the elastic deformation of the rubber is used to make the valve fit tightly when closed, achieving an excellent sealing effect and achieving zero leakage. There is no gate groove in the valve cavity, and no debris is retained, which makes the fluid resistance extremely small and the switch operation is also lighter.

Customer challenge

The gate valve has a large opening and closing torque;

The bolts are prone to rust.

The seal and middle flange of the gate valve are prone to leakage.

The gate valve plate is prone to internal leakage.

Product function

Low operating torque function

Anti-rust function

Anti-leakage function

Anti-internal leakag

The valve torque can be easily closed at 80% of the nominal diameter, achieving zero leakage under nominal pressure.

The valve cover and gland adopt countersunk wax sealing design, and the bolts are not exposed, which completely solves the problem of bolt rust

The upper seal adopts 3-way molded filler and O-ring double sealing design to ensure that the valve stem is dynamic and leak-proof; the middle flange is self-sealing, and the sealing gasket adopts the principle of O-ring. The greater the pressure in the middle cavity, the more reliable the seal

The gate adopts advanced dual-mold injection molding and high-temperature vulcanization process. There is no exposed positioning point on the gate rubber surface, 100% full coverage, uniform rubber, stable size, and good sealing performance.

Value advantage

Eco-friendly

The surface treatment uses non-toxic epoxy resin powder, which is sprayed by an automatic spray line to ensure the thickness of the plastic layer, continuous and uniform.
Excellent material

All ductile iron castings are independently cast, using the domestic leading wire feeding spheroidization technology, with a spheroidization rate of more than 90%, and quality requirements higher than national standards.
Low loss

Full channel design, low flow loss, energy saving and consumption reduction
Low torque

Under rated working pressure, the opening and closing torque is not higher than 80% of the national standard requirements
Reliable sealing

The gate is produced using advanced glue injection vulcanization technology, the rubber thickness is uniform and not exposed, 100% full coverage, and stable size; the upper seal has 3 molded fillers, and the sealing performance is reliable
