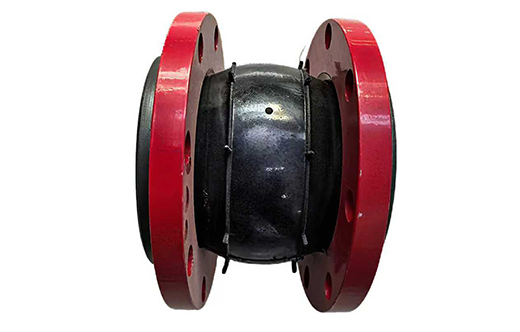

Flange Rubber Flexible Joint

American Standard:
Size range: 1 1/4"-24" (DN32-DN600)
Connection standard: ASME B16.1 CL 125, ASME B16.5 CL 150
Working pressure: 300PSI, 250PSI, 200PSI, 175PSI
British Standard:
Size range: 1 1/4"-24" (DN32-DN600)
Connection standard: BS EN 1092-2
Working pressure: PN16, PN10

Inquire Now

Product description

By absorbing and transmitting vibration, it reduces the noise and vibration of pipelines and mechanical equipment, thereby improving the stability and service life of the equipment. It is mainly used for pipeline vibration isolation and noise reduction, displacement compensation, and can be applied to the installation method of connecting one end to the pipeline flange and the other end to the pipeline welding. It can compensate for the installation error of the pipeline and transmit the axial thrust to the entire pipeline during operation, but it cannot absorb the axial displacement.

Customer challenge

Easy to slip off! Poor sealing;

Irritating odor;

Low pressure resistance and short lifespan;

Product function

Displacement compensation

Shock absorption and noise reduction

Compensate for axial, lateral and angular displacement of pipelines caused by thermal expansion and contraction, foundation settlement or installation errors to ensure the stability and safety of the pipeline system;

Effectively absorb vibration and noise in the pipeline system, reduce impact and resonance during equipment operation, and protect pipelines and equipment from damage.

Value advantage

No irritating odor

High-quality original rubber is used, and recycled rubber is eliminated to ensure safe use
Good pressure resistance and long service life

The reinforcement layer is made of imported materials,the connection surface has its own sealing gasket, and the body adopts a spherical design
