American Standard:
Size range: 2"-18" (DN50-DN450)
Design standard: ASME B16.42 Class 150
Working pressure: 300PSI, 250PSI, 200PSI
Application range: American standard flange filter is mainly used in water supply system. The working temperature of rubber ring is 0℃-80℃, and the working temperature of graphite gasket is -10℃- 200℃.
British Standard:
Size range: 2" (DN50)-24" (DN600)
Design standard: EN1092-2 PN10/16/25; TABLE D/E: AS 2129/BS 10
Working pressure: PN10, PN16, PN25
Application range: Water supply, 0-80℃
Share:
Product description

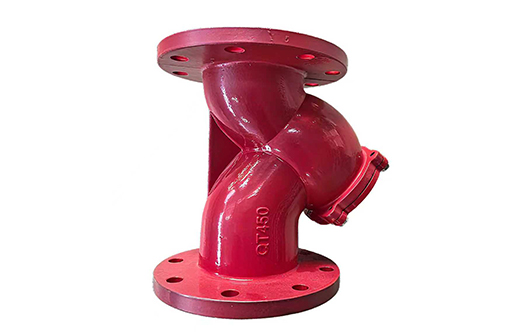

The filter is a device used to filter impurities in the pipeline medium. It is usually installed at the inlet end of the pressure reducing valve, pressure relief valve, water pump or other equipment. After the fluid medium to be processed passes through the filter screen, its impurities are blocked. When cleaning is required, just take out the detachable filter screen, reinstall it after treatment or open the drain hole to drain the sewage.
Customer challenge
Product function
Value advantage
High strength and reliable quality
Wide application range
Low flow resistance and low energy consumption
Relevant data
